DURAFOIL Ink Duct Foils

In today’s printing industry there is a requirement for high quality brushes. They are an important component of many offset press sheet feeder, sheet steadier and press blanket wash systems. The Durabrush range of brushes has been specifically developed for these purposes to suit leading press makes.

RANGE
DURABRUSH Feeder Wheels are available to suit the following press makes:
Heidelberg, Komori, Man Roland, Mitsubishi, Fuji Shinohara, Bobst Die Cutters, Miehle, Planeta, KBA, Miller.

• DURABRUSH Sheet Steadier or “hold down” brushes are available for use on an extensive range of press makes (see feeder wheels).

• DURABRUSH Blanket Wash brushes are available for Heidelberg SM102 models and Man Roland 300, 700 and 900 series presses.

APPLICATION

• The DURAFOIL range of consumables are for use on all Heidelberg CPC machines including the latest SM, CD and Quickmaster models.
• DURAFOIL Ink Duct Foil is an integral part of the CPC system. It is fitted into the Ink Duct Tray. The purpose of the foil is to act as a medium between the cam system and the ink duct roller. It prevents the ink from coming into contact with the highly engineered cam system. As a consumable product, the Ink Duct
Foil is designed to be disposed of at the end of
each print run which enables a fast and easy
colour change.
• Underliner Protective Foil is an extra protective polyester tape placed between the Ink Duct Foil and the cam as an insurance against the contamination of the ink duct system.

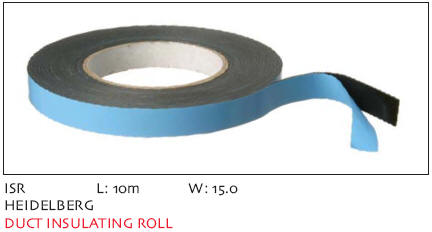

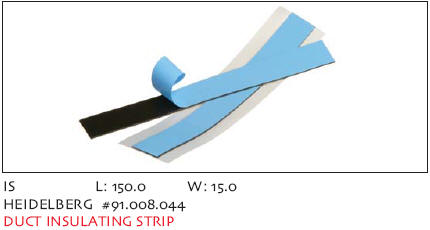

• Insulating Strip is a double-sided tape that is used to fasten the Ink Duct Foil into the duct.
• Tessamol Strip is a cellular foam placed along the bottom fold of the Ink Duct Foils to avoid seepage of excess ink back into the machine.

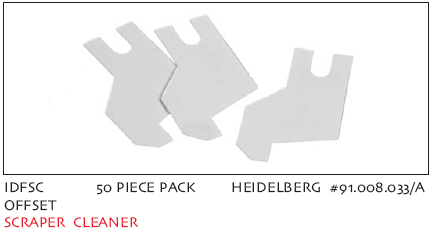

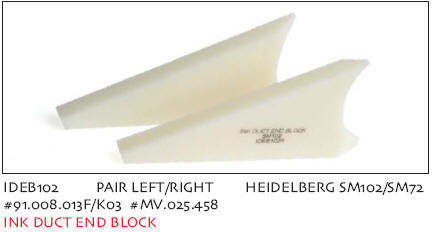

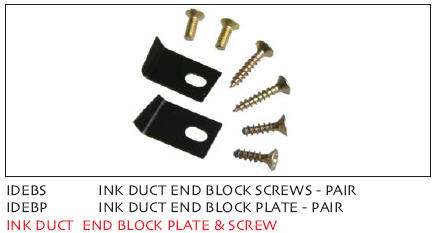

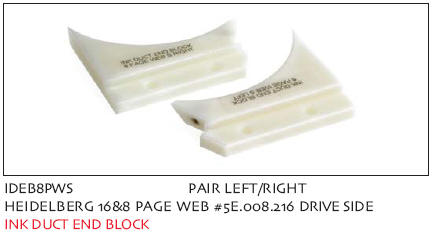

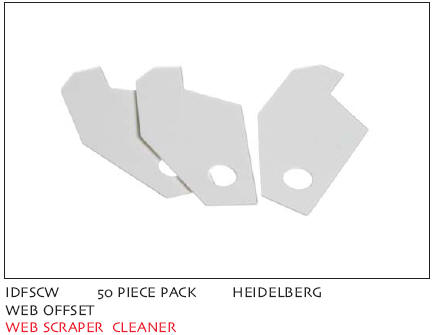

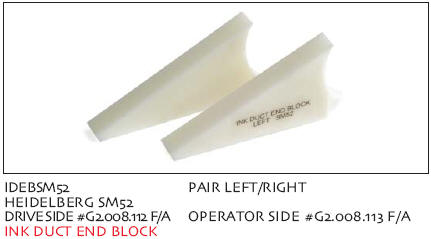

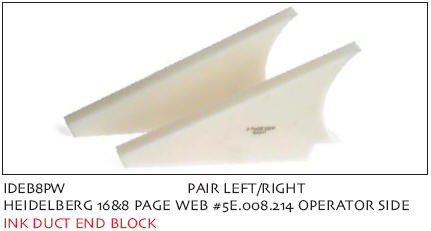

• The Ink Duct End Blocks and Scraper Cleaner are used together to seal either side of the duct.

RANGE
• Full range for all Heidelberg CPC equipped
machines including:
SM102, SM74CD, SM72/74, SM52CD, MO,
GTO/SM52, Quickmaster, 8 Page Web,
16 Page Web, Harris M1000
• Developed for use with both conventional and UV inks

A V A I L A B I L I T Y
• Large stocks of all sizes and qualities
• Packed 100 pieces per box
• Specially designed compact, low volume packaging for easy transportation and with easy opening and resealing to prevent contamination whilst in store and use
• Standard labelling per box with press model but customised upon request

QUALITY

Ink Duct Foil
• Manufactured to original drawing specifications from topgrade PET material
• Resin suppliers include the approved manufacturers Hoecsht and Du Pont
• No DURAFOIL Ink Duct Foils are manufactured from recycled polyester or from polyester from a non-certified source
• Due to the different expectations of today’s printer in terms of quality, performance and cost, DURAFOIL Ink Duct Foils have been developed in the following qualities:
